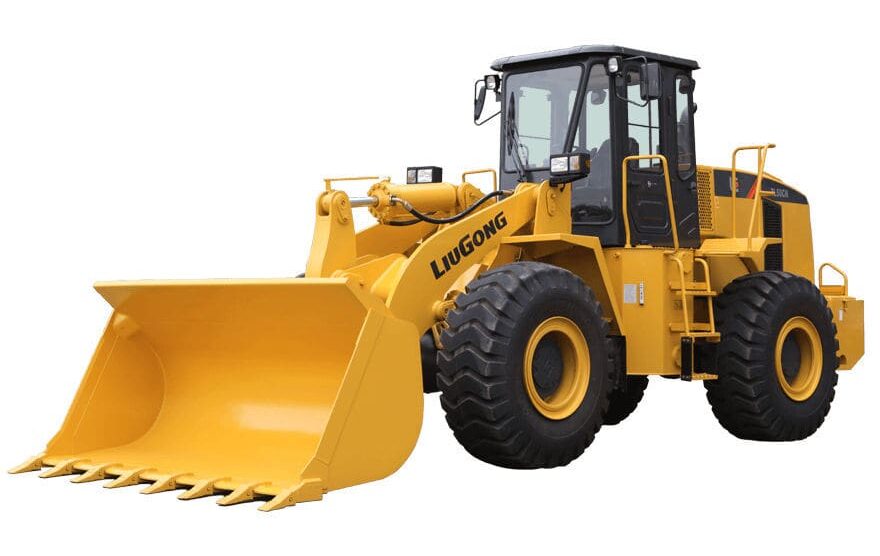

LiuGong ZL50CN Wheel Loader
Built for heavy-duty loading and material handling, the LiuGong ZL50CN delivers strong breakout force,
dependable hydraulics, and efficient performance for construction sites, yards, and quarry operations.
dependable hydraulics, and efficient performance for construction sites, yards, and quarry operations.
Highlights:
- Rated load capacity: 5,000 kg
- Engine power: 162 kW @ 2,000 rpm
- Maximum travel speed: Up to 37 km/h
- Bucket breakout force: ≈ 168 kN
Key Specifications
| Operating weight | 16,595 kg |
| Standard bucket | 3 m³ |
| Rated power | 162 kW (217 hp / 220 ps) @ 2,000 rpm |
| Maximum gross power | 162 kW (217 hp / 220 ps) @ 2,000 rpm |
| Rated load capacity | 5,000 kg |
| Hydraulic cycle time | 10 s |
| Raise time | 5.8 s |
| Maximum travel speed | 37 km/h |
| Tipping load (full turn) | 11,100 kg |
| Bucket breakout force | 168 kN |
| Dump clearance, full height discharge | 3,037 mm |
| Dump reach, full height discharge | 1,169 mm |
| Engine model | 6LT9.3 |
| Emissions | EPA Tier 2 / EU Stage II |
| Aspiration | Turbocharged & air-to-air intercooled |
| Length with bucket down | 7,923 mm |
| Width over tires | 2,750 mm |
| Cab height | 3,500 mm |
| Turning radius, outside of tire | 6,086 mm |
| Bucket capacity | 2.7 – 5.0 m³ |
| General purpose bucket | 3.0 m³ |
| Light material bucket | 5.0, 5.6 m³ |
| Rock bucket | 2.5, 2.7, 3.0 m³ |
Bucket Options
- General purpose: 3.0 m³
- Light material: 5.0 / 5.6 m³
- Rock: 2.5 / 2.7 / 3.0 m³
